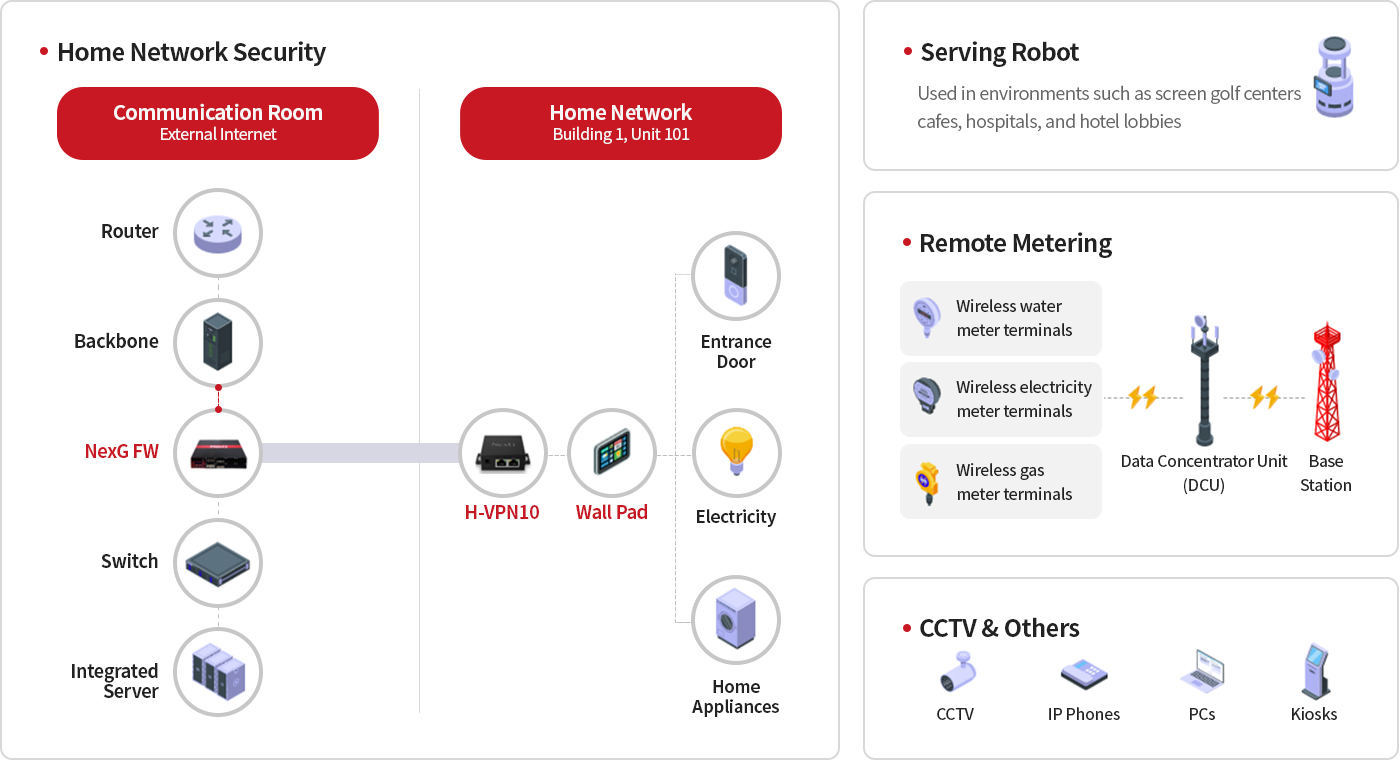

Features: Supports a wide range of IoT environments including home networks, serving robots, remote metering, and CCTV. Ensures reliability with dual AC&DC power, power locking, and heat sinks. VPN technology provides network isolation between households, encrypted data transmission, integrity protection, critical data security, and mutual authentication, meeting all home network security requirements. Hardware and software-based solutions can be optionally provided depending on the environment.

Functions

1 Security
- Equipped with KCMVP-verified cryptographic modules, applies network isolation between households, encrypts transmission paths to prevent information leakage via sniffing, and restricts external access to in-home wall pads.
- CC-certified EAL4 product prevents detection of Wall Pad IP/MAC addresses.
2 Convenience
- Can be installed without modifying the existing home network.
- Ultra-compact, plugin-connect design allows independent configuration from Wall Pad, enabling rapid fault identification and resolution.
- No additional hardware installation required.
3 Reliability
- Heat sinks and power locking applied to accommodate high-temperature installation environments.
- Stability verified through multiple commercial references.

Hardware Specifications

Model Line-up

Category		Generation VPN Client	VPN Server
Category		H-VPN 20	NexG FW 710N	NexG FW 1700U	NexG FW 1700US	NexG FW 1700US
Appearance
CPU		2 Core	4 Core	4 Core	8 Core	8 Core
Memory		512MB	4GB	8GB	16GB	32GB
Storage		4GB	16GB	256GB	256GB	256GB
Storage		-	500GB	1TB	2TB	2TB
NIC	1GC	2	6	8 (max 20)	8 (max 20)	8 (max 20)
	1GF	-	2	4 (max 16)	4 (max 16)	4 (max 16)
	10GF	-	-	Option (max 8)	Option (max 8)	Option (max 8)
Recommended Number of Households		-	100 ~ 500	500 ~ 1,000	1,000 ~ 2,000	2,000 ~ 3,000
Rack Size		1U mini	1U	1U	1U	1U
W x D x H (mm)		60 X 60 X 25	430 X 355 X 45	430 X 426 X 44.2	430 X 426 X 44.2	430 X 426 X 44.2
Power		Adapter	Single	Redundant	Redundant	Redundant

❖ Specifications and appearance are subject to change for product improvements.

Household-level Network Segmentation	Supports logical network segmentation using VPN Provides Hub&Spoke functionality for inter-household communication
Data Confidentiality	Supports encryption algorithms for authentication information Provides secure key generation and management Supported algorithms: SEED, ARIA, LEA, AES, 3DES
Data Integrity	Supports verification and prevention of tampering using hashing and digital signature techniques Provides secure software update mechanisms Supported algorithm: SHA2
Authentication	Supports various authentication methods such as PSK, ID/password Provides directional control features
Access Control	Supports whitelist-based access control Logs and manages access events
Secure Data Transmission	Provides encrypted communication to prevent data leakage or theft Supported algorithms: SEED, ARIA, LEA, AES, 3DES

VPN	Supports IKE v1 and v2 Supports Split and Non-Split tunnel configurations Equipped with packet forwarding acceleration engine
FW	Stateful Inspection / 5 Tuples (IP/Port/Protocol) MAC Address, Object 및 Schedule 기반 정책 지원 Static, Dynamic NAT, Excluded, Twice NAT
Application	Detects and controls applications
IPS & AV	Provides signature-based defense with over 8,000 signatures Supports DDoS protection
HA	Supports VPN server redundancy (Active-Active / Active-Standby)
Management	Web UI, CLI, and Dashboard for system status and real-time monitoring Supports administrator authentication and role-based access control Supports event alarm notifications Provides log encryption and backup Supports organization-level statistical reporting
