M2M / IoT
Provides secure network communication
security environment for IoT devices
KX NexG M2MG is a 3G/LTE-based security gateway and is
an M2M/IoT security product that provides a safe Internet of
Things service environment with essential security functions such as
VPN and firewall.

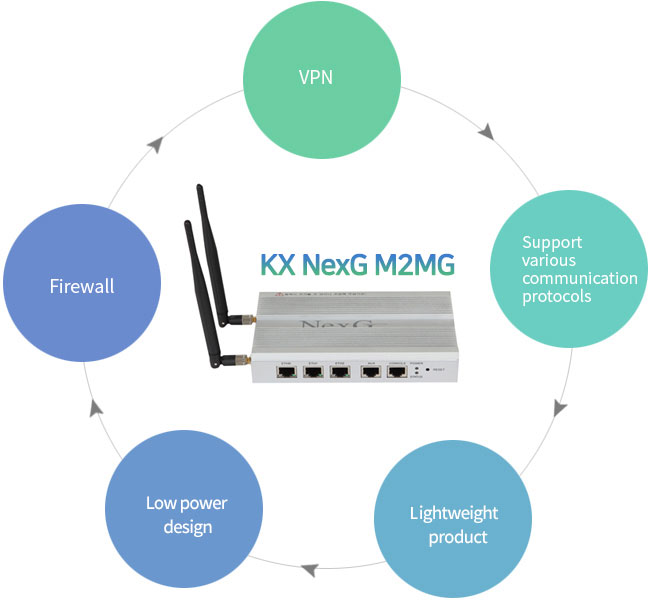

Main Features of M2M / IoT
-

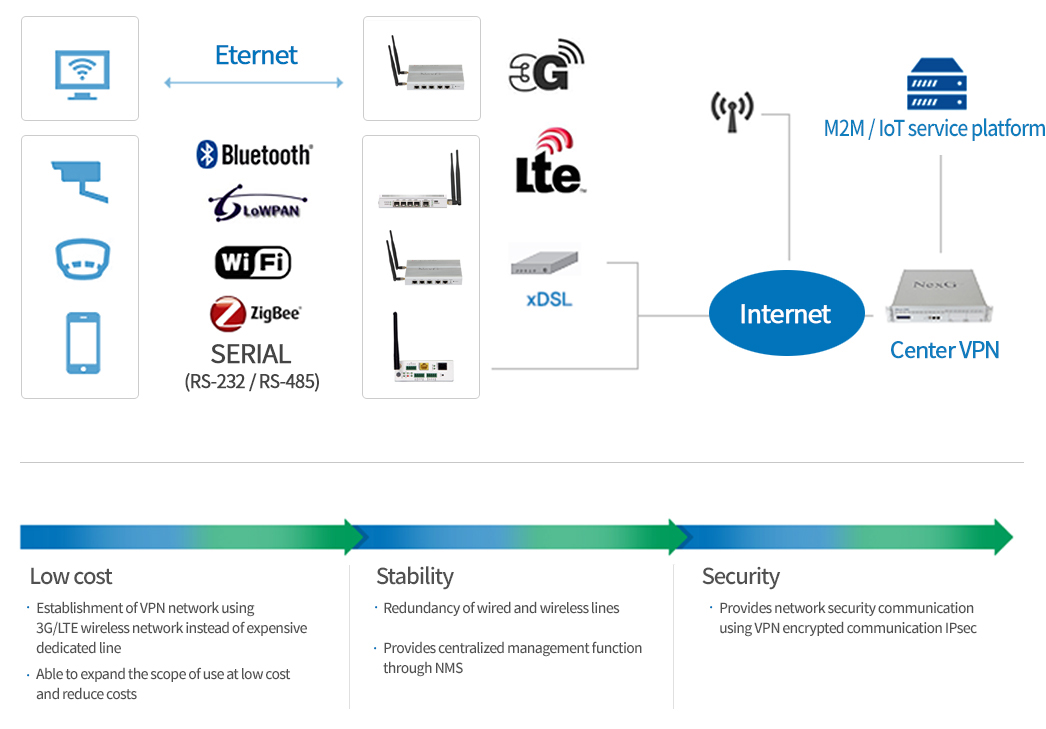

Support for wired/wireless line redundancy
Provides stable Non-Stop service by supporting xDSL wired environment and 3G, LTE wireless environment -
Support various communication protocols
Supports various communication environments (3G/LTE, WiFi, Bluetooth Low Energy (BLE), IEEE 802.15.4 (ZigBee), RS-243C/485 -
VPN
Supports IPsec, IKE v1, v2 support standard authentication/encryption algorithm and provides convenience of VPN configuration through multi-tunnel support -
Low power design
Provides safe services in an environment with no constant power or with unstable power through low-power design -
Product lightening
Supports installation in narrow spaces such as vehicles, enclosures, and ATMs through product lightening -
Strengthening product stability
Provides stable services in harsh environments of -20℃ ~ 70℃ through a large heat sink on the top without a radiant heat fan
Main Functions of M2M / IoT
-
01
VPN
-
- · Embedded Crypto H/W accelerator
- · Multi-tunnel
- · Bonding Tunnel
- · Split Tunneling
- · IPsec, IKE Version 1 / 2
- · Transport / Tunnel Mode
- · Crypto Algorithm (3DES, AES128/192/256, SEED, ARIA)
- · Integrity Algorithm (MD5, SHA1, SHA2)
- · DPD (Dead Peer Detection)
- · NAT Traversal
-
02
Firewall
-
- · Stateful Inspection
- · 5 Tuples (IP/Port/Protocol)
- · Object and Schedule-based policy support
- · Policy statistics and search support
- · Static, Dynamic NAT
- · Excluded, Twice NAT
-
03
IPv6
-
- · IPv6 Routing
- · Pv6 Firewall / IPv6 IPsec
- · 6 to 4, ISATAP
- · Pv6 DHCP Server
-
04
Network
-
- · Route Mode
- · ECMP Routing
- · Policy-based Routing
- · PIM-SM/DM, IGMP
- · VoIP(H.323, SIP) support
- · QoS (Guaranteed, Restricted, DSCP)
- · DHCP Server , Relay
- · 3G/LTE support
- · DDNS support
- · LLDP support
-
05
Management
-
- · CLI ,Web UI
- · Dashboard
- · SNMP Version 1 / 2 / 3 support
- · Syslog transmission support
- · Policy Export / Import support
- · Unused policy and object inquiry
- · Support for system setting backup and recovery
- · VForce NMS interlocking
- · Wizard support (KX NexG M2MG 10)
- · Firmware backup and recovery support
M2M / IoT Hardware Specification
| Hardware Specification | VForce UTM 403 | VForce UTM 50 | KX NexG M2MG 10 | KX NexG M2MG 30 | |
|---|---|---|---|---|---|

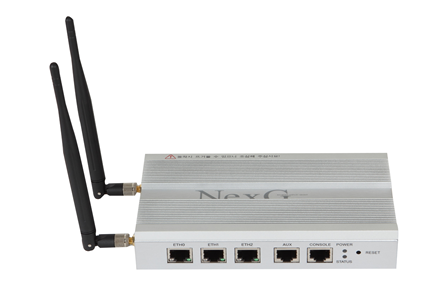

| Image |  |
 |
 |
 |
|
| Storage | CPU | 1 Core |
1 Core |
1 Core |
1 Core |
| Memory | 512 MB | 512 MB | 512 MB | 128 MB | |
| Flash Mwmory | 2 GB | 8 GB | 8 GB | 16 MB | |
| Interface | 10/100/1000BASE-TX | 3 | 5 | 1 | 1 |
| 3G / LTE | Support | Support | Support | Support | |
| RS-232C | - | Option | 1ch | 1ch | |
| WiFi | - | Option | - | Option | |
| Bluetooth | - | Option | - | Option | |
| IEEE802.15.4 | - | Option | - | Option | |
| Console/AUX | 1 / 1 | uUSB*1 | 1 / 0 | uUSB*1 | |
| Capacity | 250,000 | 250,000 | 250,000 | 250,000 | 250,000 |
| VPN Tunnel | 1,200 | 1,200 | 1,200 | 300 | |
| VPN Throughput | 370 Mbps | 60 Mbps | 60 Mbps | 30 Mbps | |
| FW Throughput | 2 Gbps | 600 Gbps | 600 Gbps | 100 Gbps | |
| power | Power Consumption (AVG/MAX) |
9W / 12W | 5W / 7W | 5W / 7W | 1W / 3W |
| Dimension | Dimension(W/D/H) | 170 x 115 x 36 | 160 x 105 x 31 | 108 x 99 x 38 | 80 x 94 x 24 |
