Next-Generation Security Solution
Next Generation FW

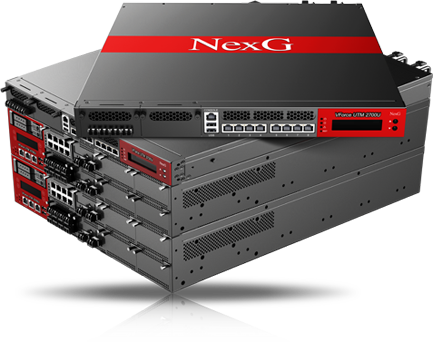

For Your Security KX NexG Next-Generation Firewall

‘KX NexG FW’ registered in the KONEPS of the Public Procurement Service is
a next-generation firewall product that integrates individual
network security functions such as firewall, VPN, and IPS into one device,
enabling powerful application detection and control and
policy control for each user.

Main Features of Next-Generation Firewall

Next-G High-Performance Integrated Security Solution Next-Generation Firewall responsible for
best security with the best integrated security functions and the latest technology

Multi-cloud environment

Supports public/private/hybrid cloud environments
and provides services optimized for
cloud configuration

Global-level threat detection network

Provides Korea’s highest level of security service by
blocking access to the network and mounting world-class
malicious code detection / vulnerability detection
security patterns (more than 50,000)

Provides OPEN API functionality

Various domestic and international integrated
management systems, etc Flexible integration
with 3rd party security solutions RESTful
Open API functionality

SSL VPN function

Supports secure remote service for mobile devices and
various terminals by default with SSL VPN optimized
for non-face-to-face services

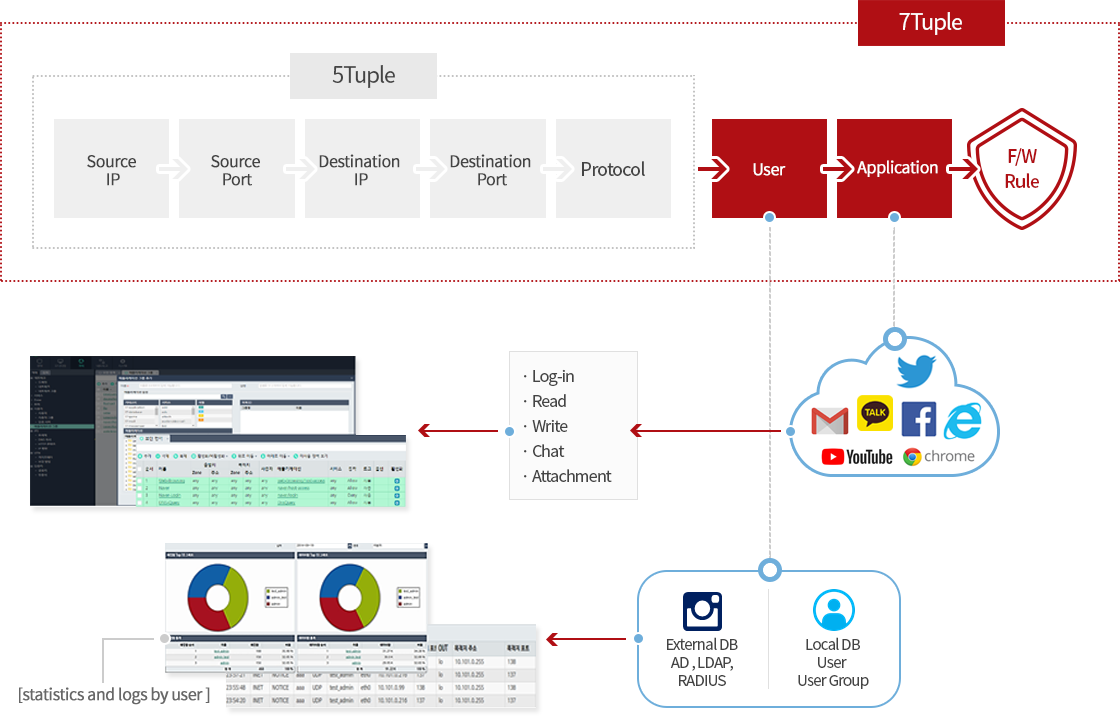

Features of KX NexG FW 7-Tuple

Provides 7-tuple security policy with added users and applications by overcoming the limitations of
the existing 5-tuple firewall based on IP, port, and protocol

Main Functions of Next-Generation Firewalls

  • 01

    Device
    Management

    • · Equipment registration and group management
        (individual equipment registration, group registration
        management possible)
    • · Save / Restore / Change settings
    • · Automatic classification function by model · Topology view
        function
    • · Support for performance summary information output by
        equipment
    • · Equipment failure by individual/group, line failure, alarm notification function
  • 02

    Monitoring

    • · Dashboard support
    • · Equipment utilization monitoring
    • · Equipment status monitoring
        (normal / failure / line / alarm)
    • · Real-time event/log monitoring
    • · Top N monitoring by group/model
    • · Individual equipment real-time performance graph
  • 03

    Policy

    • · Individual equipment policy inquiry
    • · Policy save /restore / change history
    • · Policy on/off, log activation on/off, priority adjustment
    • · Firewall log search function used in policy
  • 04

    Log

    • · Support for various logs
        (startup, audit, firewall, VPN, IPS, application, etc.)
    • · Search result export function
    • · Log classification and search function by item
  • 05

    Statistics

    • · Providing hourly / daily / weekly / monthly / yearly
        statistical graphs
    • · Providing traffic statistical graphs by equipment / group
    • · Providing resource statistical graphs by equipment / group
  • 06

    Analysis

    • · Providing real-time / hourly / daily / weekly / monthly
        analysis function
    • · IPS analysis
    • · Providing analysis function by individual/group
    • · Application analysis
    • · Firewall/session analysis
    • · HTTP Analysis / FTP Analysis
  • 07

    Report

    • · Daily / Weekly / Monthly Report
    • · Providing report PDF download function and Excel report
    • · Individual equipment report
        (Information / Periodical report)
    • · Report storage box
        (Management of previously generated reports)
    • · Integrated equipment report (Performance / Security / Traffic / Fault Report)
  • 08

    Management

    • · Setting function by administrator right
        (administrator, log administrator, policy administrator, etc.)
    • · Integrity setting
    • · Log disk threshold setting
    • · SNMP setting
    • · Dashboard setting
    • · Time synchronization
    • · Notification setting
  • 09

    NAC

    • · NAC Sensor Mounting
    • · User-based access control
    • · Compliance Forced

KX NexG Next-Generation Firewall X700 Series

Specification items KX NexG FW 2700U KX NexG FW 3700U KX NexG FW 4700U KX NexG FW 5700U
Chassis Image
Speed / Core

3.8GHz / 4

3.3GHz / 8

2.2GHz / 8 x 2

2.1GHz / 16 x 2
Memory

16GB

32GB

64GB

64GB
Storage Flash

8GB (mSATA)

8GB (mSATA)

8GB (mSATA)

8GB (mSATA)
HDD/SSD 2TB / 256GB 2TB / 256GB 2TB / 512GB 2TB / 512GB
Network
Interface		 10/100/1000BASE-TX

8(MAX 16, opt)

8(MAX 16, opt)

 8 (MAX 64) 8 (MAX 64)

1000 BASE-TX

4 (MAX 16)

8 (MAX 16)

8 (MAX 64)

8 (MAX 64)

10G BASE-X (2 Port)

- (MAX 4)

2(MAX 4)

4(MAX 16)

4 (MAX 16)

10G BASE-X (4 Port)

- (MAX 4)

- (MAX 4)

- (MAX 32)

- (MAX 32)

40G BASE-X (2 Port)

 - -

- (MAX 16)

- (MAX 16)

Module Slot

 2 2 8 8

MGMT / USB

 0 / 2 0 / 2 2 / 2 2 / 2

Console/AUX/LCD

 1 / 0 / 1
Power Redundant Redundant Redundant Redundant
100-240V/ 100-240V/ 100-240V/ 100-240V/
50~60Hz/ 50~60Hz/ 47~63Hz/ 47~63Hz/
5~25A/ 5~25A/ 10~5A/ 10~5A/

300W Max

300W Max

800W Max

800W Max
Dimensions(WxHxD, mm) 430X44X426 430X44X426 430X88X426 430X88X426
Weigh(Kg) 7kg 7kg 14.5kg 15kg
Rackmountable YES YES YES YES

KX NexG Next-Generation Firewall X600 Series

KX NexG FW 60S KX NexG FW 600 KX NexG FW 1600 KX NexG FW 2600S KX NexG FW 2600 KX NexG FW 3600 KX NexG FW 4600 KX NexG FW 5600
Chassls
CPU 2 Cores 2 Cores 4 Cores 4 Cores 8 Cores 8 Cores 8 Cores 24 Cores
Memory 4 GB 4 GB 8 GB 16 GB 16 GB 16 GB 32 GB 64 GB
Storage SSD / Flash 8 GB 8 GB 8 GB 1TB / 8 GB 8 GB 1TB / 8 GB 2TB / 8 GB 2TB / 8 GB
HDD - 500 GB 1TB 2TB 2TB 2TB 2TB 2TB
Network
Interface		 10/100/1000
Base-TX		 6 8(MAX 12) 8(MAX 20) 8(MAX 16) 8(MAX 20) 8(MAX 32) 8(MAX 64) 8(MAX 64)
1000 BASE-X - MAX 8 4(MAX 16) 4(MAX 8) 4(MAX 16) 8(MAX 32) 8(MAX 64) 8(MAX 64)
10G Base-R - - - MAX 4 MAX 4 2(MAX 8) 4(MAX 16) 8(MAX 16)
Module Slot - 1 2 2 2 4 8 8
MGMT Ports - - - - - 1 1 1
Console 1(RJ-45)
Firewall Throughput(MAX) 2G 6G 10G 20G 20G 80G 120G 160G
VPN Tunnel(MAX) 10,000 10,000 10,000 30,000 30,000 50,000 70,000 90,000
Sessions(MAX) 1,000,000 1,500,000 2,500,000 3,500,000 3,500,000 7,000,000 10,000,000 20,000,000
Power Single Single
(Redundant)		 Single
(Redundant)		 Redundant Redundant
(Single)		 Redundant Redundant Redundant
Dimensions(WxHxD mm) 300 x 44 x 180 430 x 44 x 370 430 x 44 x 450 431 x 44 x 468 430 x 44 x 450 438 x 44 x 580 438 x 88 x 600 438 x 88 x 600
Weight(Kg) 2 5 5.2 7 5.2 16 25 25
Rack mountable YES YES YES YES YES YES YES YES
Temperature 0 ~ 40℃
Humidity 5~90% (non-condensing)
Expansion NIC Modules 1G Copper 4 Port 1G Copper Module KX NexG FW 600 ~ KX NexG FW 5600
8 Port 1G Copper Module KX NexG FW 600 ~ KX NexG FW 5600
1G Fiber 4 Port 1G Copper Module KX NexG FW 600 ~ KX NexG FW 5600
8 Port 1G Fiber Module KX NexG FW 600 ~ KX NexG FW 5600
10G Fiber 2 Port 10G Fiber Module KX NexG FW 2600 ~ KX NexG FW 5600
