Next Generation UTM
Threats to various attack patterns and intrusion paths are
all resolved when you meet the KX NexG UTM equipment.
It provides the next-generation integrated threat management security
policy service with its own multi-core Deep Packet Inspection engine.
Main Features of Next Generation UTM
-
High-performance integrated
security solution equipped with multi-core CPUMulti-core CPU based optimized modules are used to implement performance differentiated from other products
-
Provides strong security such as
VPN, firewall, IPS, etc.Provides integrated security functions such as VPN, firewall, and IPS
in one device, and prevents various network attacks and threats by detecting and blocking illegal access -
High-Performance UTM Product Lineup
Implements the best performance by applying high-speed packet processing technology to provide 10G/40G-class high performance
-
Multi-line bonding and load balancing
By improving the VPN function of the previous version of the VForce VPN series, it provides a fast and stable network environment by improving the bandwidth through multi-line load balancing function and line combination.

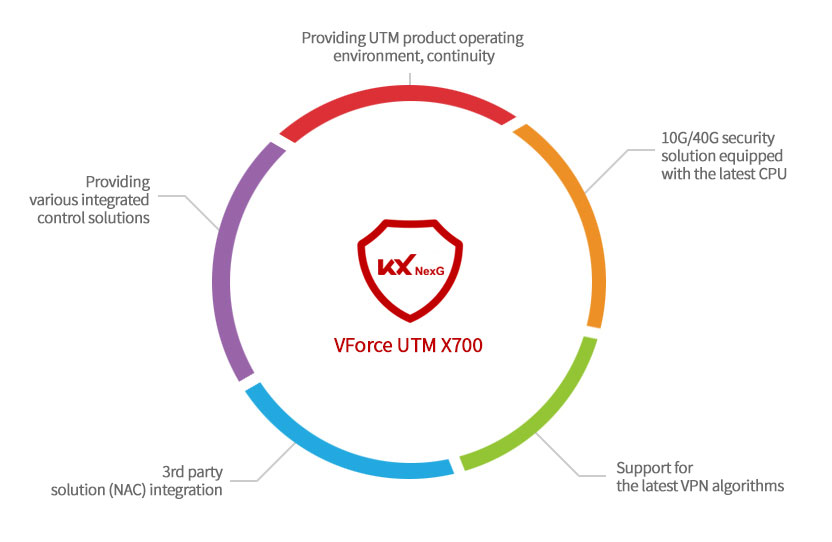

VForce UTM x700 series provides operating environment continuity for
customers using the VForce UTM series, KX NexG's best-selling product.
VForce UTM x700 series provides the best performance compared to
costs through multi-core-based high-performance processor and strong offload function support
VForce UTM
Performance

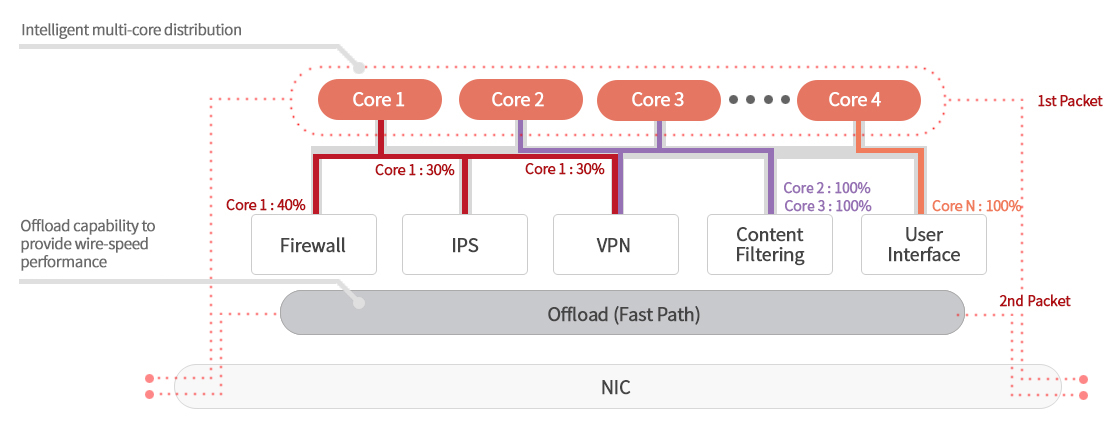

Architecture
- Equipped with multi-core-based high-performance processor
- Equipped with a high-performance processor based on intelligence multi-core and adopted a distributed architecture to enable smooth use of various security functions.
- Off-road capability
- After session creation, packet processing in its own offload ensures high processing performance by minimizing CPU usage and latency.
Next Generation UTM Key Features
-
01
Firewall
-
- · Stateful Inspection
- · 5 Tuples (IP/Port/Protocol)
- · Zone-based policy support
- · User-based policy support
- · MAC Address-based policy support
- · Object and Schedule-based policy support
- · Independent of policy and number of sessions
- · Policy statistics and scanning support
- · Static, Dynamic NAT, Excluded, Twice NAT
-
02
VPN
-
- · Multi-tunnel
- · Bonding Tunnel
- · Split Tunneling
- · Transport / Tunnel Mode
- · Crypto Algorithm
(3DES, AES128/192/256, SEED, ARIA, LEA) - · Integrity Algorithm (MD5, SHA1, SHA2)
- · DPD (Dead Peer Detection)
- · NAT Traversal
- · L2 Bridge VPN
-
03
IPS
-
- · Deep Packet Inspection
- · 4500+ Keep Signature
- · Snort Rule Format Support
- · Profile-based policy settings
- · PCRE Support
- · Black-list / White-list
- · Anti-Evasion
- · Anti-Virus (Stream-based) Detection and Blocking
-
04
Anti DDoS
-
- · TCP/UDP/ICMP/DNS/HTTP Flooding Defense
- · Scan, Sweep Defense
- · Signature-based defense
- · Counterfeiting / modulation behavior-based defense
- · Traffic Limit-based defense
-
05
Web Filter
-
- · URL and URI Extension Check
- · Custom DB Filter
- · Web Surfing Control with 96 Web Category DB Filters
- · External DB filters such as KISCOM, Malware, Phishing, etc.
-
06
Network
-
- · Route / Bridge Mode
- · 802.1Q VLAN Trunk
- · 802.3ad LACP
- · ECMP Routing
- · Policy-based Routing
- · RIP, OSPF
- · PIM-SM/DM, IGMP
- · VoIP(H.323, SIP) Support
- · QoS (Guaranteed, Limit, DSCP)
- · DHCP Server , Relay, HA
- · 3G/LTE Support
- · DDNS Support
- · Secure DNS Support
- · LLDP Support
-
07
Management
-
- · CLI ,Web UI
- · Dashboard
- · SNMP Version 1 / 2 / 3 Support
- · Syslog Transfer Support
- · Policy Export / Import Support
- · Query unused policies and objects
- · Statistics and Reports Support
- · System Settings / Support for Firmware backup and recovery
- · Administrator external authentication support
- · VForce NMS and KX NexG ESM Interworking
-
08
HA
-
- · Active-Active / Active-Standby
- · VRRP, IPAT
- · LLCF
- · L2 Bypass
- · Synchronization (Policy, Session)
-
09
Application
Control -
- · Control behavior by application
- · Game, P2P, HTS Control
- · Web Mail Control
- · Instants Messenger Control
- · Web Hard Control
- · Streaming, File-type Control
-
10
IPv6
-
- · IPv6 Routing
- · IPv6 Firewall
- · IPv6 IPsec
- · 6 to 4, ISATAP
KX NexG VForce UTM X700 Series
| Hardware Specification | VForce UTM 2700U | VForce UTM 3700U | VForce UTM 4700U | VForce UTM 5700U | |
|---|---|---|---|---|---|
| Chassis Image |  |
 |
 |
 |
|
| Speed / Core | 3.8GHz / 4 |
3.3GHz / 8 |
2.2GHz / 8 X 2 |
2.1GHz / 16 X 2 |
|
| Memory | 16GB |
32GB |
64GB |
64GB |
|
| Storage | Flash | 8GB (mSATA) |
8GB (mSATA) |
8GB (mSATA) |
8GB (mSATA) |
| HDD/SSD | 2TB | 2TB | 2TB | 2TB | |
| Network Interface |
10/100/1000BASE-TX | 8(MAX 16, opt) |
8(MAX 16, opt) |
8 (MAX 64) | 8 (MAX 64) |
1000 BASE-TX |
4 (MAX 16) |
8 (MAX 16) |
8 (MAX 64) |
8 (MAX 64) |
|
10G BASE-X (2 Port) |
- (MAX 4) |
2(MAX 4) |
4(MAX 16) |
4 (MAX 16) |
|
10G BASE-X (4 Port) |
- (MAX 4) |
- (MAX 4) |
- (MAX 32) |
- (MAX 32) |
|
40G BASE-X (2 Port) |
- | - | - (MAX 16) |
- (MAX 16) |
|
Module Slot |
2 | 2 | 8 | 8 | |
MGMT / USB |
0 / 2 | 0 / 2 | 2 / 2 | 2 / 2 | |
Console/AUX/LCD |
1 / 0 / 1 | ||||
| Power | Redundant | Redundant | Redundant | Redundant | |
| 100-240V/ | 100-240V/ | 100-240V/ | 100-240V/ | ||
| 50~60Hz/ | 50~60Hz/ | 47~63Hz/ | 47~63Hz/ | ||
| 5~25A/ | 5~25A/ | 10~5A/ | 10~5A/ | ||
300W Max |
300W Max |
800W Max |
800W Max |
||
| Dimensions(WxHxD, mm) | 430X44X426 | 430X44X426 | 430X88X562 | 430X88X562 | |
| Weigh(Kg) | 7kg | 7kg | 14.5kg | 15kg | |
| Rackmountable | YES | YES | YES | YES | |
KX NexG VForce UTM X500 Series
| VForce UTM 500 | VForce UTM 1500 | VForce UTM 2500 | VForce UTM 3500 | VForce UTM 4500 | VForce UTM 5500 | ||
|---|---|---|---|---|---|---|---|
| Chassls |  |
 |
 |
 |
 |
 |
|
| CPU | 2 Cores | 4 Cores | 6 Cores | 10 Cores | 24 Cores | 32 Cores | |
| Memory | 4 GB | 4 GB | 4 GB | 8 GB | 16 GB | 32 GB | |
| Storage | HDD | - | 500 GB | 1TB | 1TB | 2TB | 2TB |
| Flash | 4 GB | ||||||
| Network Interface |
10/100/1000 Base-TX |
4 | 8 | - | - | - | - |
| 10/100/1000 Combo | - | - | 8 | - | - | - | |
| 10/100/1000 LAN Switch | 8 | - | - | - | - | - | |
| 1000 BASE-X | - | - | - | MAX 8 | MAX 16 | MAX 16 | |
| 10G Base-R | - | - | - | - | MAX 4 | MAX 4 | |
| Module Slot | - | - | - | 2 | 4 | 4 | |
| BYPASS | 0/0 | 1(opt)/0 | 1(opt)/0 | Option | Option | Option | |
| MGMT Ports | 0 | 0 | 0 | 0 | 0 | 1 | |
| Console | 1(RJ-45) | ||||||
| Power | Single | Single/Redundant | Redundant | ||||
| Dimensions(WxHxD mm) | 300 x 44 x 180 | 440 x 44 x 315 | 440 x 44 x 405 | 430 x 88 x 455 | 430 x 88 x 510 | 430 x 88 x 510 | |
| Weight(Kg) | 1.9 | 4 | 6 | 9 | 11 | 12 | |
| Rack mountable | 1U Mini | 1U | 1U | 2U | 2U | 2U | |
| Temperature | 0 ~ 40℃ | ||||||
| Humidity | 5~90% (non-condensing) | ||||||
| Expansion NIC Modules | 1G Copper | 4 Port 1G Copper Module(bypass) | VForce UTM 3500 ~ VForce UTM 5500 | ||
| 1G Fiber | 4 Port 1G Fiber Module(no bypass) | ||||
| 1G Fiber | 1 Port 10G Fiber Module(no bypass) | ||||
